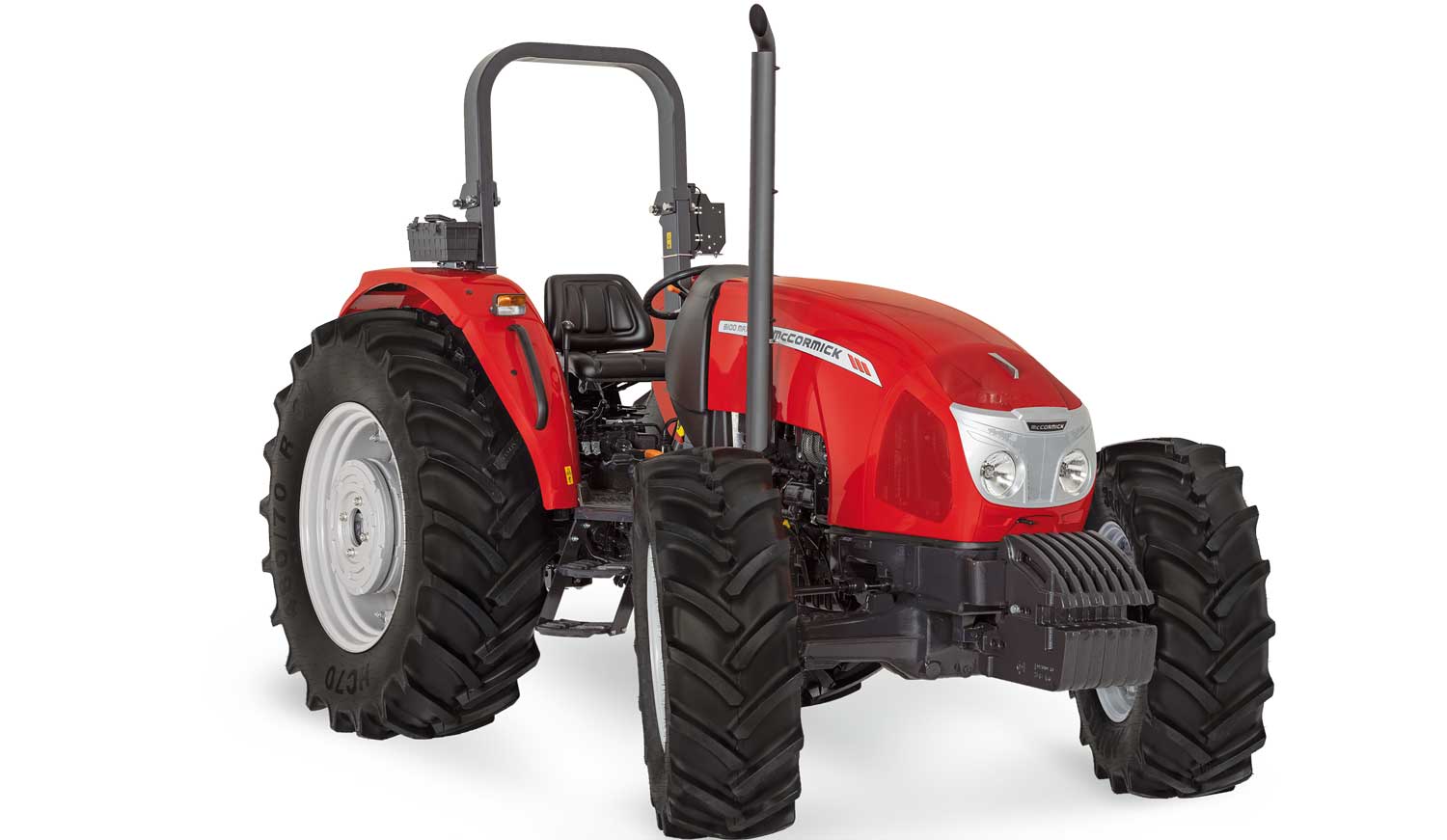

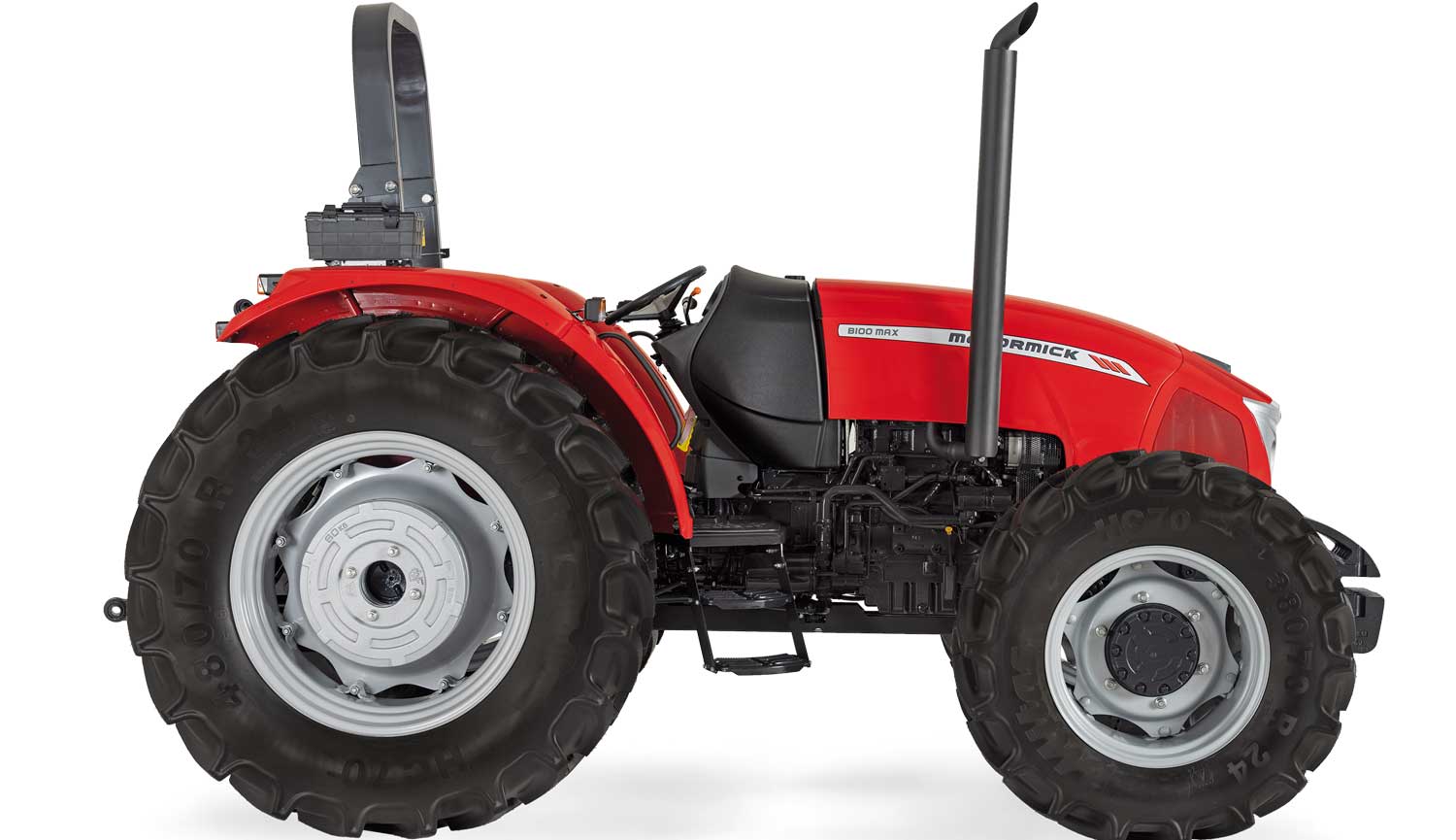

The B-MAX Series Plat
Renewed McCormick B-MAX range, designed for LRC (Low Regulated Countries) markets. The relentless research and development activity has allowed the Italian industrial group based in Fabbrico (Reggio Emilia) to take a significant step forward in the production of tractors that are increasingly at the forefront in terms of innovation, guaranteeing new functions and performance levels, while at the same time improving the design, with European style.
Simple, functional, economic
Engine
4,4 / 4
Power
82 84 88 93 102 107 111
Transmission
12FWD + 12REV with Synchro Shuttle
The standard lifting capacity ranges from 3,000 to 4,500 kilograms (with additional assist cylinders) in the low power versions, while it reaches 5,080 kilograms in the high-power models (115, 110 and 120). The independent PTO has 2 speeds, 540/1000 rpm or 540/540E, with Ground Speed PTO available as an option. The front axles are available in 2-wheel and 4-wheel drive in low power versions (with optional paddy field seals) and only in 4-wheel drive (with optional Hydralock system) for higher powers. The rear differential lock is available with mechanical or electro-hydraulic engagement.
Our Technology
McCormick enters the era of precision farming, equipping its entire range with an
advanced digital platform that boosts tractor performance and efficiency while significantly
reducing fuel consumption and emissions.
MAIN FEATURES

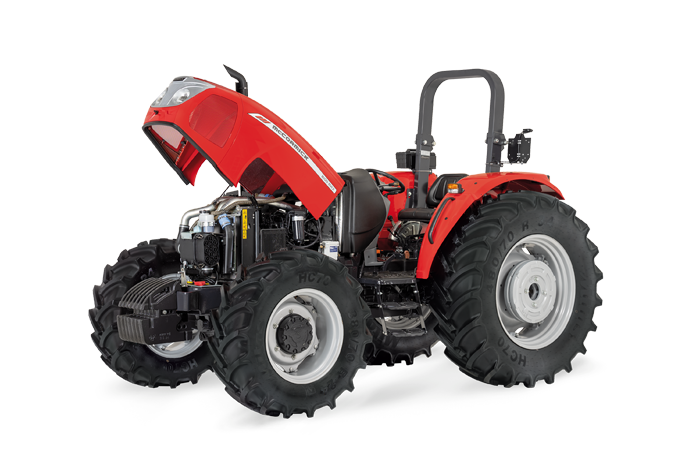

Perkins engine
Seven models in the range are all powered by Perkins four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The B85, B95 and B115 models feature Tier 0 engines, while the B90, B100, B110, and B120 models are powered by engines meeting Tier 3 emissions regulations.
Three modular transmission options
The strong point of the series is the transmission, available with a 12+12 Synchro Shuttle dry clutch for 30km/h or 16+16 (with Creeper and minimum speed of 360 metres per hour to increase versatility on specific jobs) and with a 12+12 Reverse Power Shuttle (wet Clutch) with engagement modulation and de-clutch (a button on the gear lever that bypasses the need to use the clutch pedal). The transmissions allow maximum operability in all working conditions.

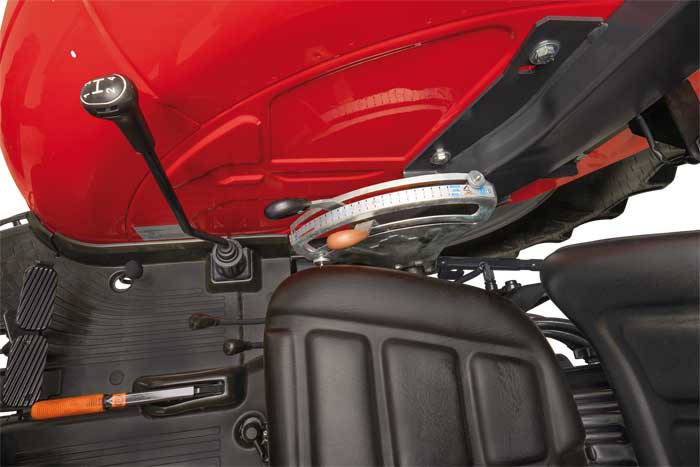

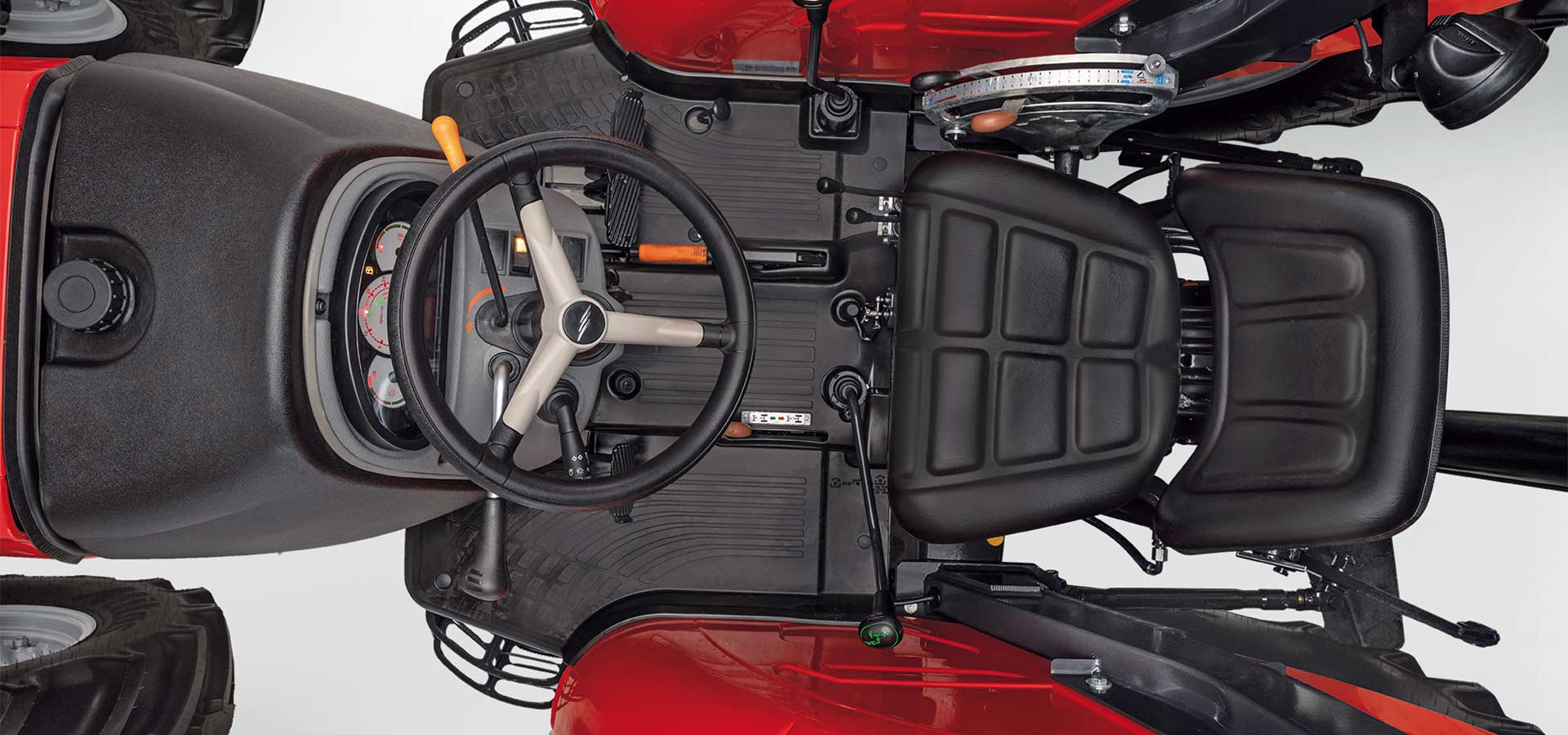

Ample and comfortable driver’s seat
Special attention has been paid to the design, with an updated look that echoes the modern Landini family feeling. The main novelty for the operator's area is the introduction of the reverse power shuttle control lever and a new dashboard.
Hydraulic circuit
The hydraulic flow rate to the services (hitch and rear spool valves) is 54 litres/min, while as much as 30 litres/min are available at the steering pump for the version with hydraulic reverse shuttle (24 l/min for mechanical reverse shuttle). An optimised oil filtration system ensures circuit maintenance. Plat versions offer 1 to 2 rear spool valves.
x
Perkins engine
Seven models in the range are all powered by Perkins four-cylinder engines that deliver high torque backup and quiet, eco-friendly performance while ensuring excellent fuel economy. The B85, B95 and B115 models feature Tier 0 engines, while the B90, B100, B110, and B120 models are powered by engines meeting Tier 3 emissions regulations.
x
Three modular transmission options
The strong point of the series is the transmission, available with a 12+12 Synchro Shuttle dry clutch for 30km/h or 16+16 (with Creeper and minimum speed of 360 metres per hour to increase versatility on specific jobs) and with a 12+12 Reverse Power Shuttle (wet Clutch) with engagement modulation and de-clutch (a button on the gear lever that bypasses the need to use the clutch pedal). The transmissions allow maximum operability in all working conditions.
x
Ample and comfortable driver’s seat
Special attention has been paid to the design, with an updated look that echoes the modern Landini family feeling. The main novelty for the operator's area is the introduction of the reverse power shuttle control lever and a new dashboard.
x
Hydraulic circuit
The hydraulic flow rate to the services (hitch and rear spool valves) is 54 litres/min, while as much as 30 litres/min are available at the steering pump for the version with hydraulic reverse shuttle (24 l/min for mechanical reverse shuttle). An optimised oil filtration system ensures circuit maintenance. Plat versions offer 1 to 2 rear spool valves.
All the accessories and features that make this tractor unique and irreplaceable.
